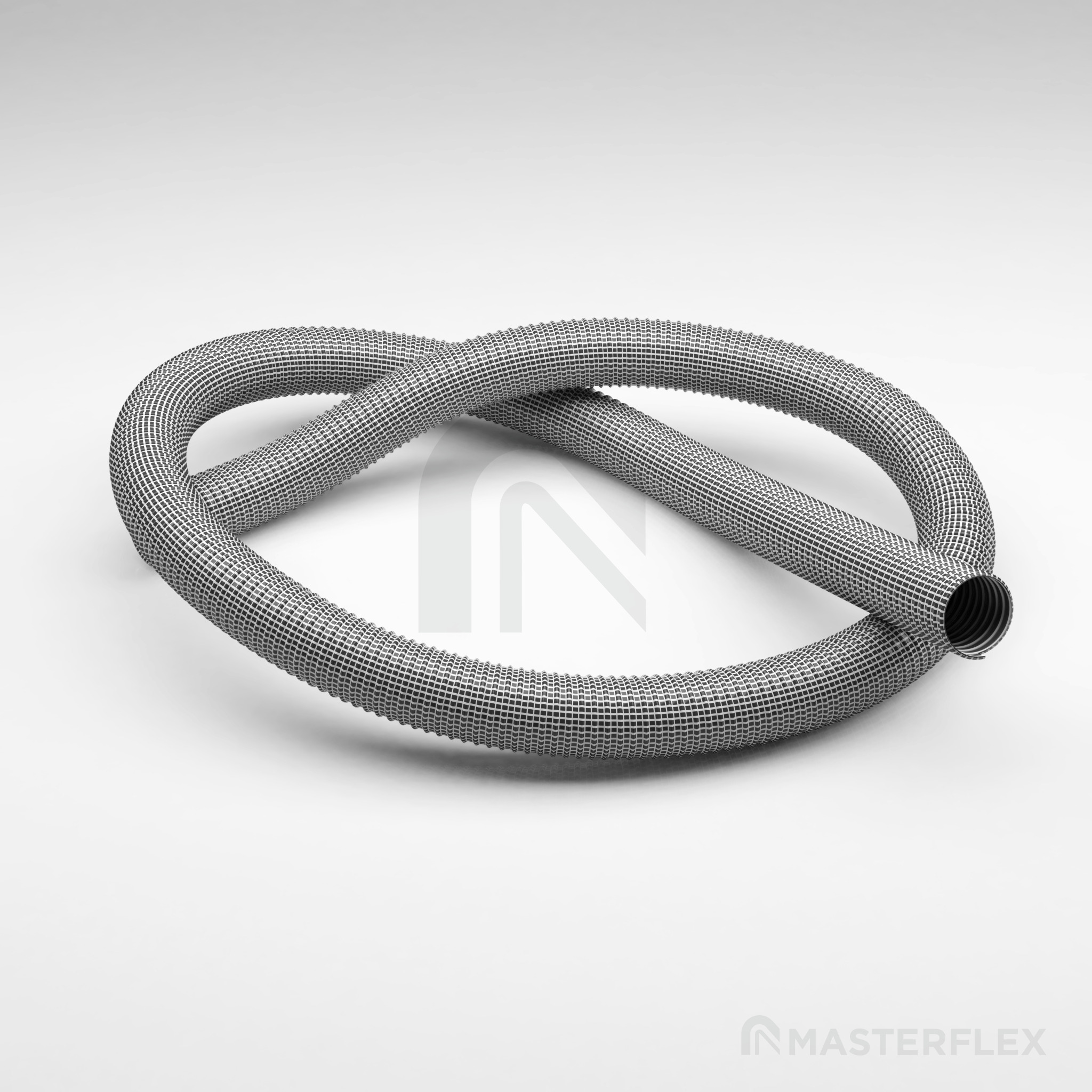

Master-PVC Flex
Article master no: 000468
PVC suction hose / transport hose, very light, highly flexible, thread-reinforced
View product informationProduct configurator
Define parameters here and click button!
Product information
very flexible
medium heavy
moderately pressure resistant
Product data

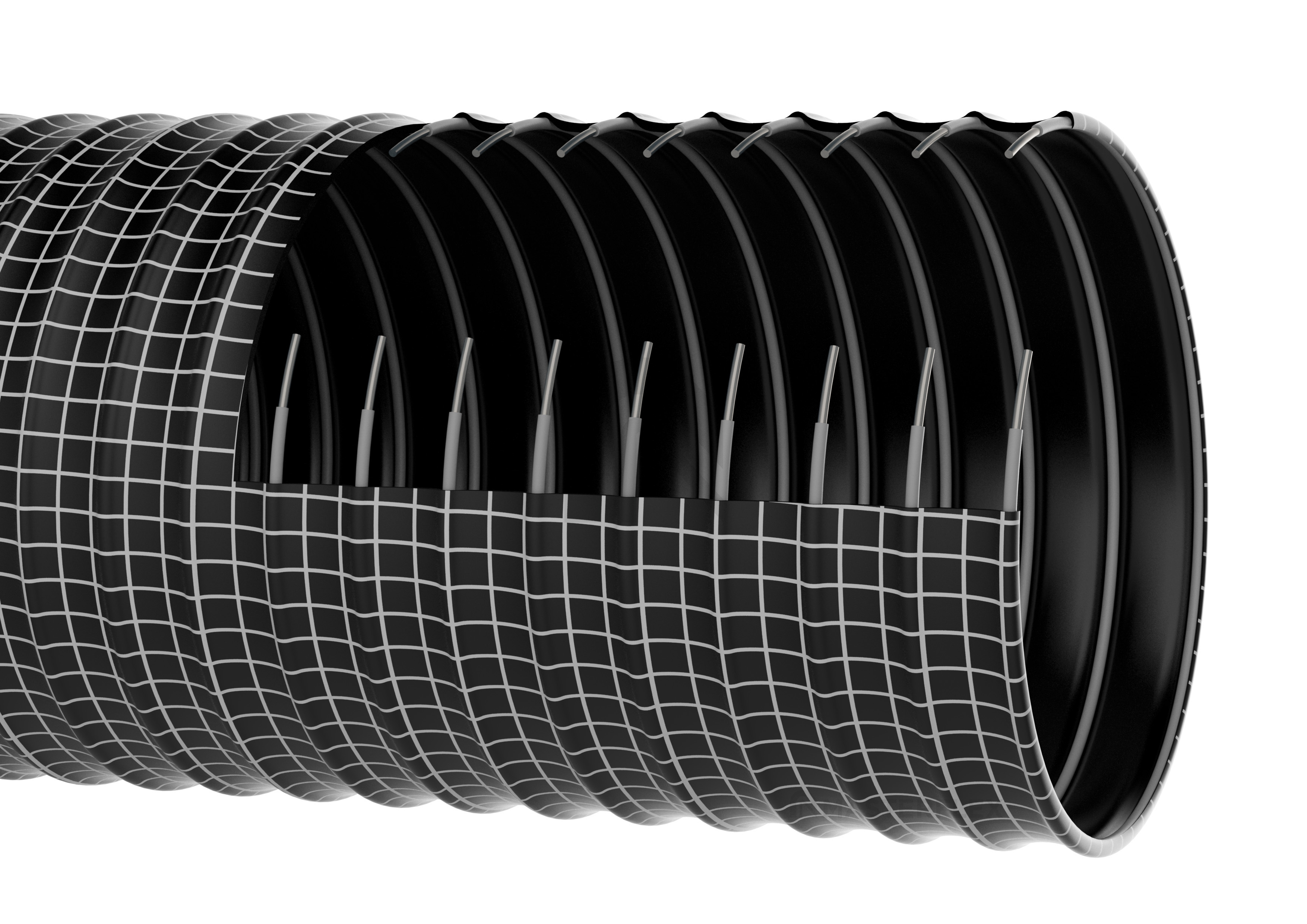

Construction / Material
| Type of construction | extruded spiral hose |
| Spiral Design | plastic coated, made of steel wire |
| Material of the spiral | spring steel |
| Execution of the wall | two-ply design with thread reinforcement |
| Material of the wall | soft PVC |
Properties
| Specifications of the product | RoHS-compliant |
| Chemical Properties | good resistance to chemicals, good resistance to alkaline solutions, good resistance to oil, good resistance to acids |
| Flexibility | very flexible |
| Weight | medium heavy |
| Pressure Resistance | moderately pressure resistant |
| Colour | black |
Operating Temperature
| Temperature Range | 0 to 70 °C |
| short-term maximum temperature | peaks to 85 °C |
Delivery Information
| Delivery, type of production | various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock |
Application Areas
| Areas of application | Automotive, Plant & Mechanical Engineering, Industry, Ventilation & Air-conditioning, Waste Disposal & Cleaning Technology, Conveying, lifting & feeding technology, Textile |
Customizing Options
| optional item modification (on request) | other lengths, other nominal widths, with customer-specific imprint |
Application areas
Supply variants
All data refer to a medium and ambient temperature of +20 °C.
| Extended Article Number | Nominal Size (DN) in mm | Outer diameter in mm | Bending radius* in mm | Weight in kg/m | Operating pressure in bar | Negative pressure in bar | Max. Production length in m | Stock Lengths in m | Length (standard lengths available for order) in m | In stock |
|---|---|---|---|---|---|---|---|---|---|---|
| 000468:25:x | 25 | 30 | 25 | 0.22 | 1.00 | 0.39 | 15.00 | 15 | 10 / 15 | |
| Variant details | ||||||||||
| 000468:25:10,00 | 25 | 30 | 25 | 0.22 | 1.00 | 0.39 | 15.00 | 15 | 10 | |
| 000468:25:15,00 | 25 | 30 | 25 | 0.22 | 1.00 | 0.39 | 15.00 | 15 | 15 | |
| 000468:28:x | 28 | 33 | 28 | 0.24 | 1.00 | 0.34 | 15.00 | 15 | 10 / 15 | |
| Variant details | ||||||||||
| 000468:28:10,00 | 28 | 33 | 28 | 0.24 | 1.00 | 0.34 | 15.00 | 15 | 10 | |
| 000468:28:15,00 | 28 | 33 | 28 | 0.24 | 1.00 | 0.34 | 15.00 | 15 | 15 | |
| 000468:32:x | 32 | 37 | 32 | 0.27 | 1.00 | 0.34 | 15.00 | 15 | 10 / 15 | |
| Variant details | ||||||||||
| 000468:32:10,00 | 32 | 37 | 32 | 0.27 | 1.00 | 0.34 | 15.00 | 15 | 10 | |
| 000468:32:15,00 | 32 | 37 | 32 | 0.27 | 1.00 | 0.34 | 15.00 | 15 | 15 | |
| 000468:38:x | 38 | 43 | 38 | 0.37 | 0.95 | 0.29 | 15.00 | 15 | 10 / 15 | |
| Variant details | ||||||||||
| 000468:38:10,00 | 38 | 43 | 38 | 0.37 | 0.95 | 0.29 | 15.00 | 15 | 10 | |
| 000468:38:15,00 | 38 | 43 | 38 | 0.37 | 0.95 | 0.29 | 15.00 | 15 | 15 | |
| 000468:41:x | 41 | 46 | 41 | 0.40 | 0.95 | 0.29 | 15.00 | 15 | 10 / 15 | |
| Variant details | ||||||||||
| 000468:41:10,00 | 41 | 46 | 41 | 0.40 | 0.95 | 0.29 | 15.00 | 15 | 10 | |
| 000468:41:15,00 | 41 | 46 | 41 | 0.40 | 0.95 | 0.29 | 15.00 | 15 | 15 | |
| 000468:44:x | 44 | 50 | 44 | 0.43 | 0.90 | 0.28 | 15.00 | 15 | 10 / 15 | |
| Variant details | ||||||||||
| 000468:44:10,00 | 44 | 50 | 44 | 0.43 | 0.90 | 0.28 | 15.00 | 15 | 10 | |
| 000468:44:15,00 | 44 | 50 | 44 | 0.43 | 0.90 | 0.28 | 15.00 | 15 | 15 | |
| 000468:51:x | 51 | 57 | 51 | 0.49 | 0.90 | 0.28 | 15.00 | 15 | 10 / 15 | |
| Variant details | ||||||||||
| 000468:51:10,00 | 51 | 57 | 51 | 0.49 | 0.90 | 0.28 | 15.00 | 15 | 10 | |
| 000468:51:15,00 | 51 | 57 | 51 | 0.49 | 0.90 | 0.28 | 15.00 | 15 | 15 | |
| 000468:63:x | 63 | 69 | 63 | 0.61 | 0.80 | 0.25 | 15.00 | 15 | 10 / 15 | |
| Variant details | ||||||||||
| 000468:63:10,00 | 63 | 69 | 63 | 0.61 | 0.80 | 0.25 | 15.00 | 15 | 10 | |
| 000468:63:15,00 | 63 | 69 | 63 | 0.61 | 0.80 | 0.25 | 15.00 | 15 | 15 | |
| 000468:70:x | 70 | 78 | 71 | 0.78 | 0.80 | 0.20 | 10.00 | / | 10 | |
| Variant details | ||||||||||
| 000468:70:10,00 | 70 | 78 | 71 | 0.78 | 0.80 | 0.20 | 10.00 | / | 10 | |
| 000468:76:x | 76 | 83 | 76 | 0.85 | 0.80 | 0.20 | 10.00 | 10 | 10 | |
| Variant details | ||||||||||
| 000468:76:10,00 | 76 | 83 | 76 | 0.85 | 0.80 | 0.20 | 10.00 | 10 | 10 | |
| 000468:80:x | 80 | 87 | 80 | 0.88 | 0.80 | 0.18 | 10.00 | 10 | 10 | |
| Variant details | ||||||||||
| 000468:80:10,00 | 80 | 87 | 80 | 0.88 | 0.80 | 0.18 | 10.00 | 10 | 10 | |
| 000468:89:x | 89 | 96 | 89 | 0.98 | 0.80 | 0.17 | 10.00 | / | 10 | |
| Variant details | ||||||||||
| 000468:89:10,00 | 89 | 96 | 89 | 0.98 | 0.80 | 0.17 | 10.00 | / | 10 | |
| 000468:102:x | 102 | 109 | 102 | 1.15 | 0.80 | 0.15 | 10.00 | / | 10 | |
| Variant details | ||||||||||
| 000468:102:10,00 | 102 | 109 | 102 | 1.15 | 0.80 | 0.15 | 10.00 | / | 10 | |
* Related to the inside of the hose bend | Subject to technical changes and color deviations.
Personal advice
Do you have questions about the product, an individual solution or specific areas of application for your needs? Don't hesitate to contact us! We look forward to hearing from you!
- Looking for information on pipe strength or installation? Take a look at our technical information.
- Certificates and declarations of conformity can be found on the"Quality" page.
- You'll find a list of all our competencies and contact details on our contact page.
Possible Connections

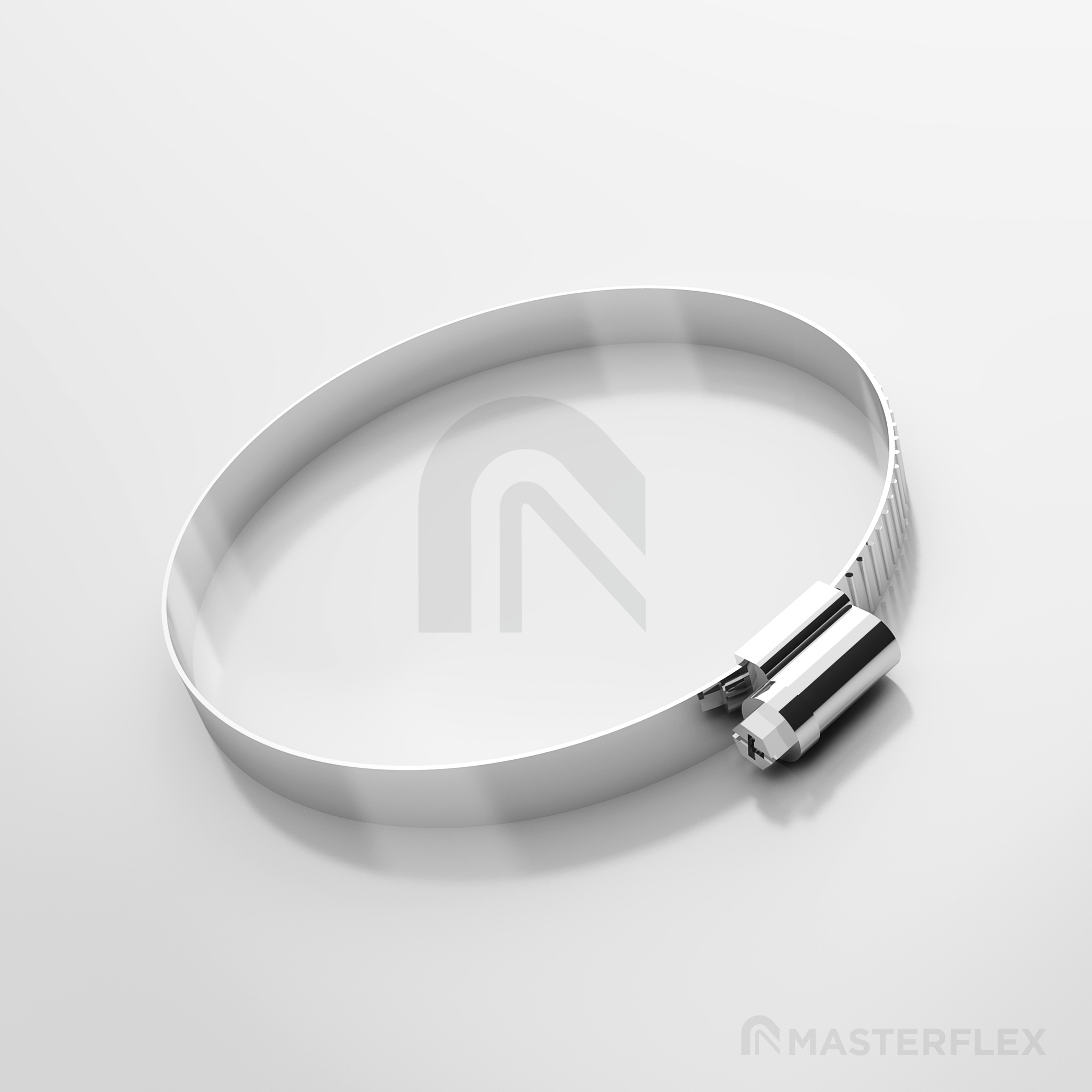

Hose Clamp with Worm-Gear, Steel quality W4, stainless steel 1.4301
Standard clamp for fastening light hose types to connecting pieces on mobile and stationary installations
Cuff for Master-PVC-Flex
special coupling for connecting Master-PVC Flex hoses

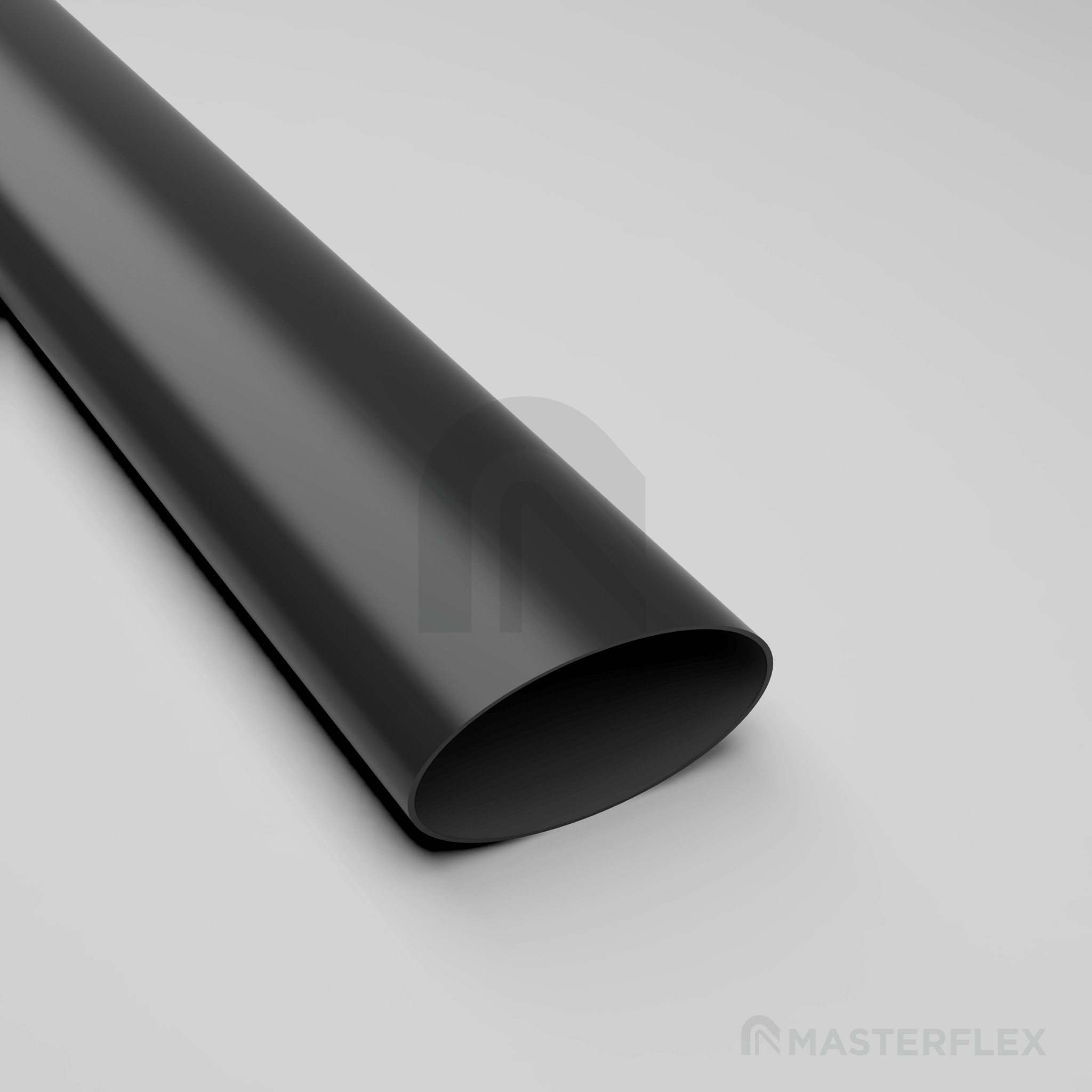

Heat Shrink Cuff
Heat shrink sleeve for easy connection and sealing of hoses
